To all macOS users:

I personally don't own a Apple.
I only have limited access to an iMac 27 Late 2013.
There is now Big Sur 11.6 installed (yes, it's possible).
I compiled it on this macOS.

Things to do:

1. Install the FTDI driver V1.4.7 for Big Sur
    Look at the FTDI VCP drivers site for install instructions.
2. Plugin the USB adapter
3. Check if inside the /dev directory is a file named /dev/tty.usbserialXXX
4. Add your user account to the group of this device (else you have no write access)
    (use ls -al /dv/tty.usbserial* to see the group name of the file)
5. Check if GuzziDiag shows this device in settings.
6. It should work now, but I was not able to test it with a real ECU.

If not, I can not assist you further, as already mentioned, I'm not an apple user.


GuzziDiag V0.60

Changelog

Program

MD5 checksum

Windows553a184d8fdd13be678babba26e3158a
Linux x86e252ec694f0e6a3d6854b639ef4013eb
Linux x643c9ac0644747f7bc1fe8eb5da6b3ff28
Mac OS X427a8e143075c7158c1a4b9f42ac732f

IAWDiag V0.52

Changelog

Program

MD5 checksum

Windows83c903f30b0ed4762311f512a3d4f057

IAW15xReader V0.68 (15M, 15P, 15RC)

Changelog

Program

MD5 checksum

Windows11e027ca1423d29bc7dc41fdefd88d07
Linux x86a486ad035c9340935e27f12e5d23ca14
Linux x6436b3ef41560f5487bbd72d87547025d6
Mac OS X4d6feb4a6e863a243934f07b9ef31502

IAW15xWriter V0.27 (15M, 15P, 15RC)

Changelog

Program

MD5 checksum

Windows59f5f894e9a0fda7aab5a39b9c524d38
Linux x8657583d8329bbf817845cce319a9e01c5
Linux x641f56827fedc1d0b3ded61ffe2df98488
Mac OS Xf3302c9d3906aafa255b5d624c08f8bf

IAW15xEEPROMTool V0.04 (15M, 15P, 15RC)

Changelog

Program

MD5 checksum

Windows81287a9964e35a9e1a4ae2420e745b06
Linux x865814817f61536ef14203458dc5b3da75
Linux x6446a210e8c35480fd6f5e3494d56a104c
Mac OS X38718004a993d18c22786161d2e7cc42

IAW5xReader V0.28 (5AM, 59M)

Changelog

Program

MD5 checksum

Windows8fd8de288375f3ff02375790812d7f58
Linux x86ea534df35df95350f865eafa2c4e8734
Linux x6482f3ee2cd59311d3fc8098a1b818f441
Mac OS X79b1a409f643e4bee5b5afbb1fffe630

IAW5xWriter V0.24 (5AM, 59M)

Changelog

Program

MD5 checksum

Windows0724e4a9f9fa11bbff776ffc8685d76b
Linux x863852fb2543c7d851a87e9722bb3462bb
Linux x64a6511328961bb1e86603432df1e8e500
Mac OS X3ea3fb28b5f32a5ab3105c0deaa8a4e5

IAW5AMEEPROMTool V0.04 (5AM)

Changelog

Program

MD5 checksum

Windows52f2532de50bbfc55fd0ccbe176f767b
Linux x862b88cab7cae3e4a3174a52adda5682ef
Linux x649b12f0149a0f37ca0cf4d109050c15c3
Mac OS Xbfcc82b75278c0aac3ad7898ab5f1ce8

IAWMIUG3Reader V0.05

Changelog

Program

MD5 checksum

Windowsf29b9e808cf4935ebd826c0e980188fb
Linux x86f569f4ce32f6f6bd1b9be09d190c582c
Linux x64a18baea363b10e5cbbabf11e9462a6ad
Mac OS Xa308a0bd4edaddae745dcd42b8babad6

IAWMIUG3Writer V0.06

Changelog

Program

MD5 checksum

Windowsd124a762629115fa8b4ac735e25502ee
Linux x861944146241e283bc21e3148dab735c0f
Linux x6455da72f6be09cb147626dab9040d62d1
Mac OS X7bcad7cc05d8e13b8bc7a1663b67127d

IAWMIUG3EEPROMTool V0.02

Changelog

Program

MD5 checksum

Windowsc945afaddeaf8185fe3e223b7aaf5853
Linux x86ba324f51ad9e2f5a2491582f3ea43b0a
Linux x6402f894fecb25c4c0028f8551b8ecfbd9
Mac OS Xc286ae5665c90e6b74717c5a5e218a4c

IAW7SMReader V0.03

Changelog
Info: it takes about 30 minutes! Remove the headlight fuse or use a battery charger.

Program

MD5 checksum

Windows30239475cea4ea60b68feea13279e294
Linux x8613b0ae8c5181e3155edd009b38c3d0a7
Linux x64325a9fce999c4e81e28de0449f0db3b0
Mac OS Xnot available up to now

IAW7SMWriter V0.08

Changelog
Info: it takes about 30 minutes! Remove the headlight fuse or use a battery charger.
Have you set the delay of the driver to 1ms? That's essential!.
Warning: Don't flash HW1xx versions in a HW3xx ECU and vice versa. You will brick your ECU!

Program

MD5 checksum

Windows4c40f6804407416b9e7d800ef7970f82

IAW7SMEEPROMTool V0.01

Changelog

Program

MD5 checksum

Windowsfe1ff339163199a543f2e66ff92189d4

IAWMIUReader V0.01

Changelog

Program

MD5 checksum

Windows2e4009e8a6384610177320982c088977

IAWMIUWriter V0.01

Changelog

Program

MD5 checksum

Windows0495a043fca359dc9a0d200a5c013a1d

IAWMBC1Reader V0.01

Changelog

Program

MD5 checksum

Windows4ae448cda3890893b684993c25ccf4fb

ManaTCU V1.03


The belt solution
Changelog

Program

MD5 checksum

Windowse6f140e3fcadf5f2300d918bb16d2452

RPMSensorEmu V0.17

A tool to emulate the phonic wheel for an 'ECU on the desk'
Changelog

Program

MD5 checksum

Windows56f94b6959dda0430cc07368b7bc9031

GearSpeed V1.55

A tool to see the speed at diffferent transmission ratios

Program

MD5 checksum

Windows86c58f1f537f2b94dcc88880e8ee04bf
Linux x8651e022163ada52b15089be4074cd78d4
Linux x64d36c786dbeffbc35722787b273138d28
Mac OS X531876e5fceace35d06e4862d3b3a80a

ZT2CSVToLogWorksDIF V0.71

A tool to convert Zeitronix ZT-2 CSV files to LogWorks DIF format
(The timeline is incorrect by factor 4, since the ZT-2 logs 4 times more data)
Changelog

Program

MD5 checksum

Windows1365b3b727cd65a7fad96dcc54c37f28

FTDI Driver/Treiber

Windows Mac OS X
Or go direct to the FTDI driver page

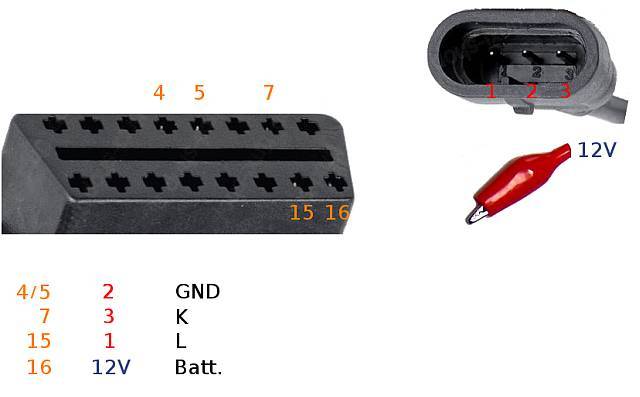

AdapterTest V1.01

Windows
Linux x86
Linux x64


All OSs:

Make sure that no screensaver becomes active while you are running Reader or Writer.
This would disturb the data transfer and the connection will be lost.
Also virus scanners can make problems. If your are in doubt, disable it temporarily.
All programs need write access to the directory where they resides (ini file).

Windows hints:

If you have problems with connection or breaks during connection,
then stop all programs which are running in the background.
Your taskbar in the right lower corner should be nearly empty.
If the devicemanager shows a working COM port, but nothing works, disable virus scanners.

Linux hints:

The USB adapter is searched as /dev/ttyUSB*, where * is a placeholder.
/dev/ttyUSB* has 660 as rights per default.
So you need to change this, or use: sudo ./GuzziDiag_Vx.xx to start it.
You can also add yourself to the linux group dialout, than you are also allowed to use it.
A directory ~/.local/share has to be available. But that should be the case.

Mac OS X hints:

The USB adapter is searched as /dev/tty.usbserial*, where * is a placeholder.
If your finder is blinking:
try to convert the app to a self growing diskimage.
It was reported that this solves the problem.
From OS 10.9 onwards Apple uses its own USB driver for FTDI.
In a forum thread it was written that this also causes problems.
There are some commands to disable the internal driver (see FTDI PDF),
or search for a program which disable the original driver.
Just installed 'el capitan' OSX 10.11.3. The FTDI device is working out of the box.

Die Benutzung der Software erfolgt auf eigene Gefahr!
Keinerlei Haftung!

The usage of this software is at one's own risk!
No liability!




FTDI Driver Windows:

If you have problems to get a connection try to install version 2.08.24 of the driver.
2.08.24 as self-installing exe.
With this, you can istall the drivers before plug in the adapter the first time.
So the newer windows versions does not start to search for a driver on the net.

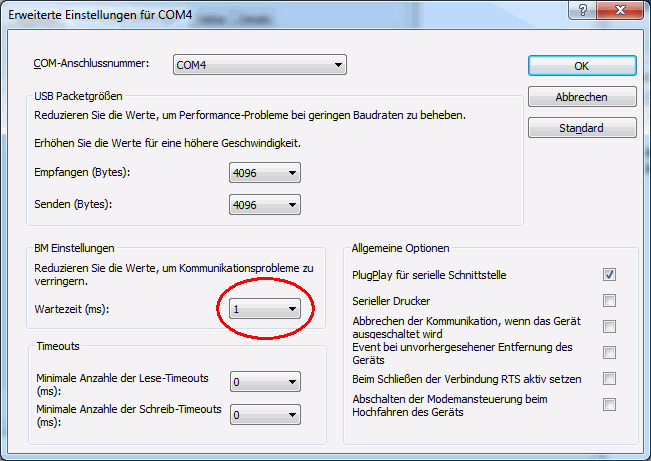

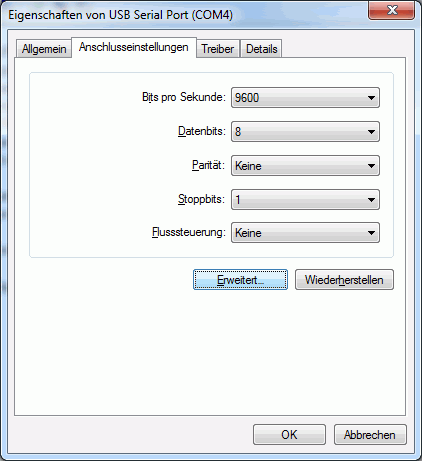

FTDI Settings Windows:

Treiber EinstellungenTreiber Einstellungen


If connection stops in between, you can try to reduce both 4096 values to 2048.


Since there are still problems to install the driver in windows, I created a short windows 10 video
